About us |
Resonance Technology was founded in 1983 and since
then it has been applying the achievements of modern physics in measuring
technology as well as in industrial and research laboratories.
Initially we produced mainly small nuclear magnetic
resonance (NMR), electron paramagnetic resonance (EPR) and nuclear
quadrupole resonance (NQR) spectrometers, designed chiefly for university
labs and research institutes. Later our company specialized in
manufacturing a wide range of magnetic field measuring instruments (both
Hall-effect and NMR) and laboratory sources of magnetic fields. Moreover,
we offer, available to order only: microwave resonators for X and Q bands,
microwave systems for moisture measurements of granural materials,
electromagnetic flowmeters, position locators for probes flowing in oil
pipes etc.
We also certify all kinds of magnetic field measuring
instruments.
|
Standard production |
Our company produces single- and triple axis
Hall-effect magnetic field meters (teslameters / gaussmeters) designed for
a wide range of measurements of direct (DC) and alternating (AC) magnetic
fields (types: RX-21a / b, RX-213, RX-25 and NMR reference teslameter -
type RX-32). Moreover, we manufacture two types of microwave systems for
water content - RX-95X and RX-95C for 10 GHz and 5.7 GHz bands
respectively.
|

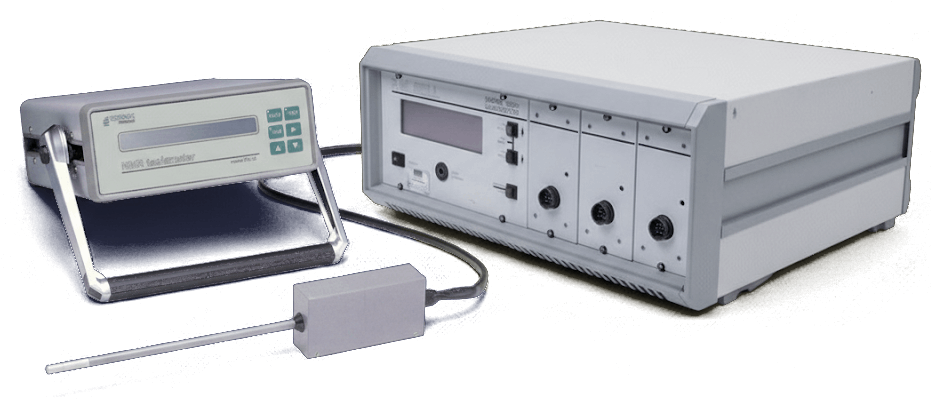

RX - 32 Teslameter |
|
The instrument is designed for
operation with any research or service apparatus involving very
high precision measurements and stabilization of magnetic field. It
may be considered as a standard equipment
of EPR and NMR spectrometers, stands for Hall effect studies, MRI
systems for field mapping and shimming, beam
handling and a variety of instrumentation for studying
materials with field-dependent characteristic, as well as for
checking of the magnets, electromagnets,
etc.
The teslameter, due to precision
and repeatability of field measurement, may be used as a standard
for testing the other instruments. It combines refinement of
measurement with simplicity of using and
allows fully automatic tracking and locking of magnetic field.
It operates on a principle of the swept-frequency
measurement and differs considerably from the
conventional automatic NMR devices utilizing an external modulation
of magnetic field to be measured. Due to
this new technique the RX family of instruments are the fastest and
most flexible teslameters available today.
 Download English Manual in PDF format
Download English leaflet in PDF format
 Download DEMO
|
|
|
RX - 21a/b Teslameter |
|
This portable, Hall-effect instruments
measure both DC and AC components of the magnetic field. The latter
quantity is measured in frequency range of 20 Hz - 25 kHz as true RMS
value. The teslameter RX-21b provides a measurement range of 0 - 3000 mT
(0 - 2000 mT for RX-21a) divided into two subranges: 0 - 300 mT and 0 -
3000 mT, automatically or manually switched. Instruments employs an
advanced technology of digital signel processing and, optionally,
temperature compensation of readings in order to ensure higher accuracy
and repeatability of measurements.
Download English leaflet in PDF format.
Download
MAG PRO 3.1 software demo for data acquisition and data processing.
|
|
|
RX - 213 Teslameter |
The teslameter RX-213, a hand held, Hall-effect
magnetic field meter measures simultaneously, along three
orthogonal axes, DC and AC components of the magnetic field in the
frequency range 20 Hz - 20 kHz. The latter quantity is measured as true
RMS value.
Instrument provides a measurement range of 0 - 2000 mT,
divided into three subranges: 0 - 20 mT, 0 - 200 mT and 0 - 2000 mT,
automatically switched. The teslameter employs an advanced technology of
digital signal processing and dynamic compensation of readings in order to
provide higher accuracy and repeatability of measurements.
Download English leaflet in PDF format.
|
RX - 25 Teslameter |
|
The instrument simultaneously measures magnetic field
induction along three orthogonal axes. The readings present the field
values along each of the axes and the magnitude of the magnetic vector B.
RX-25 is equipped with high quality miniature
Hall-effect GaAs type sensors. It can measure both DC and AC components of
the magnetic field in the frequency range of 48 Hz - 52 Hz or 20 Hz - 50
kHz. The instrument features the serial port RS 232 and an analog voltage
output - proportional to the field measured. Digital processing of the
measurement signal, together with dynamic and temperature correction of
probe readings, quarantees increased accuracy of measurement.
Download English short Manual in PDF format.
Download English leaflet in PDF format.
Download DEMO
|
|
|
Microwave moisture meter RX - 95 |
|
The system operation is based on microwave energy
absorption by water molecules present in the radiated material. This
contactless, non-destructive technique of immediate measurement of water
content can be used in testing such materials as: coal, flour, grain,
cement, seeds, sugar, tobaccos etc. Due to high accuracy (resolution
exceeding 0.1 % of weighted water content), repeatability and short time
of measurements - the system is suitable for continuous measurements of
water content in granular materials and for logging of the values in PC
memery of by 4 - 20 mA current loop.
Download English leaflet in PDF format.
|
|
|
Non-standard products |
Products available to order only: high homogeneity
laboratory electromagnet (RX-14) with the magnetic field up to 10 kGs,
Helmholtz coils and any measuring systems employing magnetic field as a
data carrier.
We provide customization of the system, together with
PC software modification and long distance transfer of data (via Internet
or radio).
|
|
|
